🐱 Cats vs. Mice 🐭

👤 Student Information

Name : Adelia Putri
Student ID : 20210782
Email : adelia@kaist.ac.kr
Git Repository:

• Gitea | Cats vs. Mice
• Github | Cats vs. Mice

Demo Video: Cats vs. Mice Demo Video

📚 Table of Content

• 🐱 Cats vs. Mice 🐭
  • 👤 Student Information
  • 📚 Table of Content
  • 🎮 Game Description
    • 🖼️ Game Interface
  • 🕹️ Game Mechanics
    • 💸 Currency
    • 👾 Characters
      • 1. Cats 🐈
      • 2. Mice 🐁
    • 🔗 Interactions List
  • 🗂️ Code Organization
    • 💻 Tech Stack
    • 🧩 How Components Interact
    • 💡 Design Patterns Used
      • 🏭 Factory Method Pattern
      • ♟️ Strategy Pattern
  • ⭐️ Special Features
  • ⚠️ Limitation
  • 🙌 Acknowledgement

🎮 Game Description

Cats vs. Mice is a tower defense-style strategy game inspired by Plants vs. Zombies, redesigned with a cute kitchen theme. Players place cats on a tiled kitchen floor to stop waves of invading mice who are after the Cheese Feast, a table full of cheesy dishes at the leftmost side of the screen.

🎯 Objective:
The player’s goal is to protect the Cheese Feast by defending against waves of incoming mice
To do this, the player can place different types of cats with special abilities to attack the mice

🏆 Winning Condition:
Successfully stops all the mice from reaching the Cheese Feast
The progress can be seen on the progress bar at the top right of the screen

❌ Losing Condition:
A mouse reaches the Cheese Feast

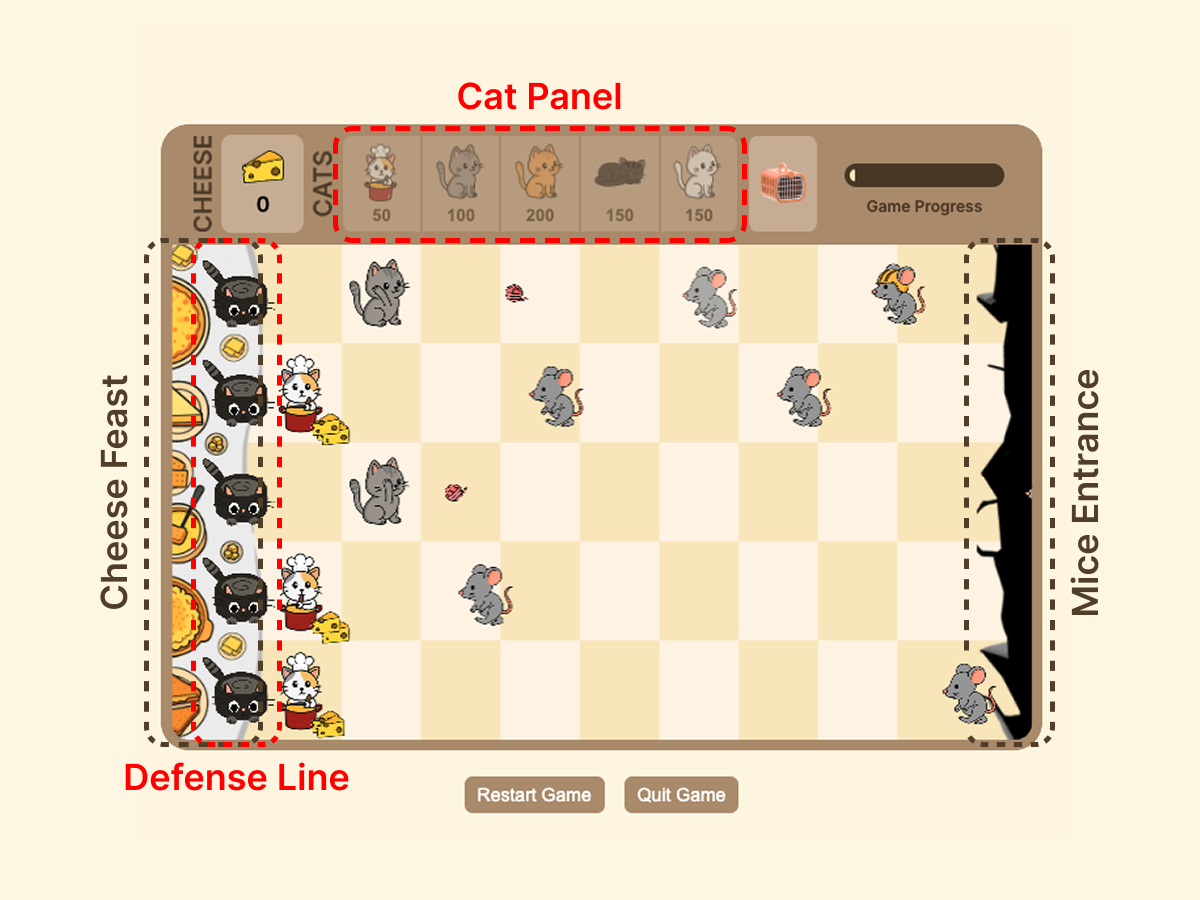

🖼️ Game Interface

• Background: A 5x9 tiled kitchen floor with a checkered pattern
• Cat Panel: A row of clickable cat icons showing the price of each cat
• Cheese Feast: A table full of cheese dishes on the left side of the screen
• Mice Entrance: Mice appear from a hole on the floor on the right side of the screen
• Defense Line: Each row has a robot vacuum at the far left that activates once a mouse approaches it, sweeping away all mice in that row
• Cheese (currency): Drops from 🧑‍🍳 Chef Cat periodically
• Progress Bar: Showing the progress of the game, if the progress bar is full, the player wins the game

🕹️ Game Mechanics

💸 Currency

• The currency of the game is 🧀 Cheese (replacing the sun in Plants vs. Zombies)
• Players can collect cheese produced by 🧑‍🍳 Chef Cat
• 🧀 Cheese is used to buy different types of cats, which can be placed on the 5x9 kitchen grid

👾 Characters

1. Cats 🐈

• Objective: Protect the Cheese Feast by attacking the mice, slowing down the mice, or generating cheese. Each cat has a different ability and price
• Cats can only be placed in empty tiles
• Cats can be removed from the tiles by using the Cage Button
• Cats' HP is shown through its opacity, the lower the HP, the lower the opacity

Cat Roles

Icon	Cat Type	Ability	Cheese Cost
	Single Yarn Cat	Shoots 1 yarn ball every 3 seconds	100
	Double Yarn Cat	Shoots 2 yarn balls every 3 seconds (double damage)	200
	Sleepy Cat	Sleeps until touched, then instantly attacks mouse that touched it	150
	Chef Cat	Produces 25 cheeses every 10 seconds	50
	Ice Cat	Slows down mice by throwing snowballs and attacks them	150

Notes:

• 🧶 Yarn : reduces a mouse's HP by 20 points
• ❄️ Snowball : reduces a mouse's HP by 8 points + speed reduction (-0.02 units/frame)

2. Mice 🐁

• Objective: Mice enter from the right side and move left toward the Cheese Feast
• Mice will move forward in a straight line unless blocked by a cat
• If a mouse reaches a cat, it will attack the cat, which is indicated by a smoke puff

Mouse Roles

Visual	Mouse Type	Description	Appearance
	Basic Mouse	Walks slowly (0.15), standard HP (100)	Early Game
	Helmet Mouse	Wears a helmet, high HP (150)	Mid Game
	Sporty Mouse	Moves quickly (2x Basic Mouse), low HP (80)	Mid Game
	Boss Mouse	Very slow (3x Basic Mouse), very high HP (1000)	Late Game

🔗 Interactions List

In the game, players can do the following actions:

Action	Trigger	Result
Cheese pick up	Mouse click on cheese icon	Increase cheese count
Place cat	Mouse click on UI + tile	Deduct cheese, place cat
Remove cat	Mouse click on UI + cat	Remove cat from the tile

In the game, these interactions between entities can happen:

Interaction	Trigger	Result
Yarn / Snowball hits mouse	Collision	Mouse takes damage
Mouse reaches cat	Collision	Mouse attacks cat
Mouse reaches robot vacuum	Collision	Robot vacuum move to the right and remove all mice in the rows
Mouse reaches Cheese Feast	Collision	Trigger loss state
All mice defeated	Mouse count check	Trigger win state

🗂️ Code Organization

💻 Tech Stack

This project is developed using JavaScript, HTML, and CSS for structuring and styling the user interface

Libraries used in the project:

• p5.js: for drawing and managing canvas-based graphics
• p5.play: for sprite and animation handling in the game environment
• p5.scenemanager: for managing multiple game scenes (start page and actual game page)

🧩 How Components Interact

This game is built using Object-Oriented Programming (OOP) principles to create reusable code. The overall structure of the code is as follows:

├── README.md
├── assets/                   // all game assets
├── css/                      // game styling
├── index.html                // entry point of the game
├── js/                       // external libraries
├── sketch.js                 // main game script
└── src                       // core game source code
    ├── classes               // class definitions for game entities
    │   ├── Cat.js
    │   ├── Mouse.js
    │   ├── RobotVacuum.js
    ├── constants
    │   ├── Colors.js         // centralized color palette
    │   └── Prototype.js      // dimensions from Figma prototype
    ├── level
    │   ├── Level1.js         // list of mice for level 1
    │   └── WinLose.js        // win/lose overlay
    ├── logic
    │   ├── Controller.js     // UI update functions
    │   └── Helper.js         // general utility functions
    └── scenes                // game scenes for screen manager
        ├── GameScene.js
        └── StartScene.js

In this project, GameScene.js acts as the central coordinator of the gameplay. Below is the significance of each components:

• Game Loop (GameScene.js): checks for interactions between entities and calls the appropriate methods
• Entity Classes (src/classes/): each entity manages its own state and behavior (action(), attack(), etc.), which will be called by GameScene.js
• UI Sync (Controller.js): updates DOM (cheese count, progress bar, etc.) based on internal game state

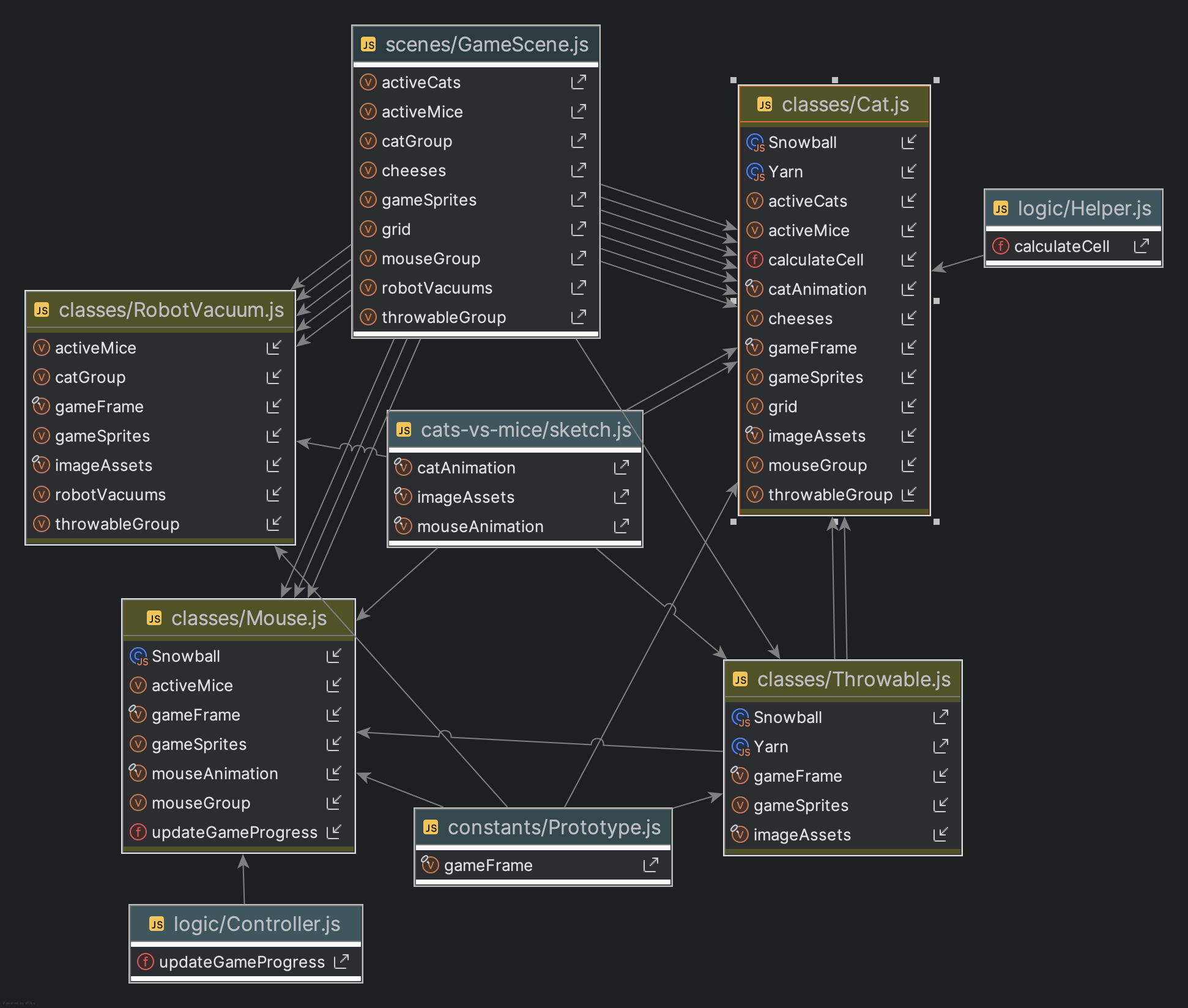

The UML for the classes is as follows:

💡 Design Patterns Used

🏭 Factory Method Pattern

• Implemented in the createCat(type, x, y) and createMouse(type, row) functions
• These functions abstract away the creation logic and allows easy type extension

♟️ Strategy Pattern

• Each 🐱 Cat subclasses overrides the action() method to implement different attack behaviors (e.g., throwing yarn, exploding)

⭐️ Special Features

• Opacity-based HP indicator: the cats and mice's opacity lowers as their HP decreases
• Robot Vacuum: Activated when a mouse touches it and will defeat all mice in its row upon activation

⚠️ Limitation

The current version still has these limitations:

• When a 💤 SleepyCat overlaps with 2 mice, it only attacks the first mouse that touches it instead of both
• When 2 mice perfectly overlap with each other, one of them won't be detected by other entities like RobotVacuum

🙌 Acknowledgement

• I learned how to use p5.play from the tutorial at Learn p5play
• I found solutions to coding issues on Stack Overflow
• I referred to W3Schools CSS Reference for styling help
• Some visual assets were sourced from Flaticon, PNGTree, LovePik, PNGEgg
